Automatic Feed Label Cutter
1.CCD automatic scanning positioning.
2.Dual-head design(Cut+Impress).
3.Servo motor.
4.Support mixed cutting by scanning the QR code.
2.Dual-head design(Cut+Impress).
3.Servo motor.
4.Support mixed cutting by scanning the QR code.
0
YH-S490 Kaxing
Package Size： cm
Payment Method

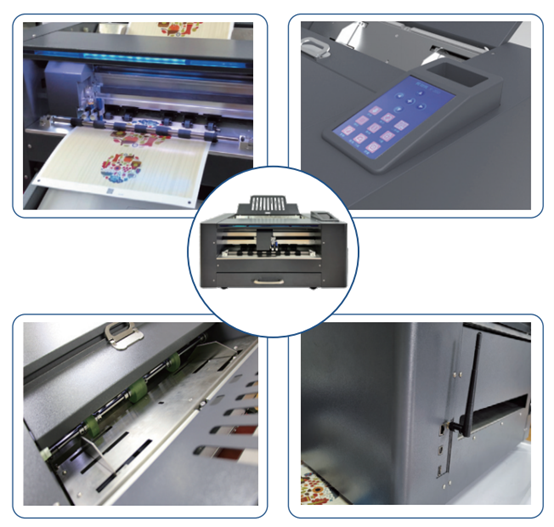

Product Feature
- Dual-head carriage,High-definition CCDcamera,accu-rate identification,no material limitation.
- Large color touch screen,simple UI interface,simpl and sensitive operation.
- Large-capacity paper bin,can hold 100-150 sheets of paper at a time.
- Support U disk QR code recognition,automatic file extraction,Support wifi.
Various Application
Specification
Model
YH-S490 Kaxing
Feed time
2S
Cutting speed:
1200mm/S
Display screen:
4.3inch touch screen
Packing size:
845*610*500mm
Applicable material size:
Width:185-300mm,Length:150-500mm,A4,A3
Min circle cutting size:
5mm circle
Command language:
HPGL
Max cutting thickness:
350g/m
G.W.:
56KG
