Yinghe Best DTF Transfer Printing Machine for Business
Overall improvements, designed from the user's perspective, better suited to actual operation and maintenance scenarios, enhancing user-friendliness.

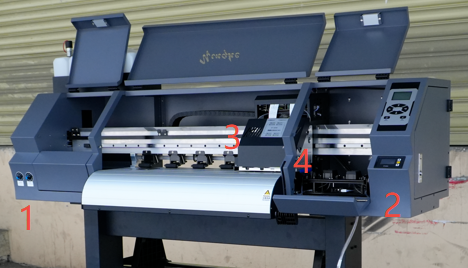

DTF KC 700 I3200, Ultra version, appearance modifications, upgraded points:
1. White ink stirring pump + circulation pump, adjustment knob, independently located on the left side.
2. Platform temperature control, modified display interface, independently located on the right side.
3. I3200 model, with printhead anti-collision protection;XP600 printhead or I3200 printhead (optional).
4. Ink stack maintenance, recessed sheet metal design, making operation more convenient.
| Model | YH-700 DTF | Model | YH-Powder shaking machine |
| Printhead | Epson XP600*2PCS(13200 Optional) | Temp | 0-400°C (be adjustable) |
| Print speed | 4pass:7m²/h 6pass:5m²/h 8pass: 3m²/h 4pass:12m²/h 6pass: 8m²/h 8pass: 6m²/h | Speed | 40m/h |
| Color | CMYK+W | Power | 5KW |
| Rip software | Maintop | Noise | 30db averange |
| Resolution | 1440DPI | Voltage | 220V, 60Hz |

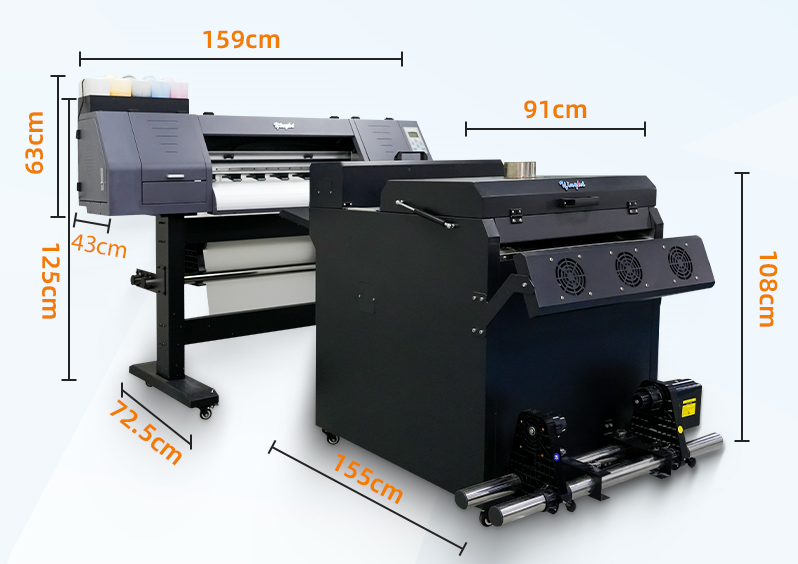

| Size | 179*72*63cm(L*W*H) | Size | 136*96*120cm(L*W*H) |
| Operating system | WindowsXP/Win7 | ||
| Print width | 600mm | ||
| Ink type | Pigment ink | ||
| Print material | PET Film | ||
| Voltage | AC 110V(+10%),AC 220V(10%),60Hz 5KW | ||
| Heating device | Pre print-post print type 3 heater (can be controlled separately) | ||
| Picture format | BMP/TIFNPG/PDF | ||
| Environment temperature | Temp: 20°C-28°C Humidity: 40%-70%RH | ||
Yinghe New Generation DTF Transfer Printing Machine Overall improvements, designed from the user's perspective, better suited to actual operation and maintenance scenarios, enhancing user-friendliness.
DTF KC 700 I3200, Ultra version, appearance modifications, upgraded selling points:
1. White ink stirring pump + circulation pump, adjustment knob, independently located on the left side.
2. Platform temperature control, modified display interface, independently located on the right side.
3. I3200 model, with printhead anti-collision protection; XP600 printhead replaced with I3200.
4. Ink stack maintenance, recessed sheet metal design, making operation more convenient.

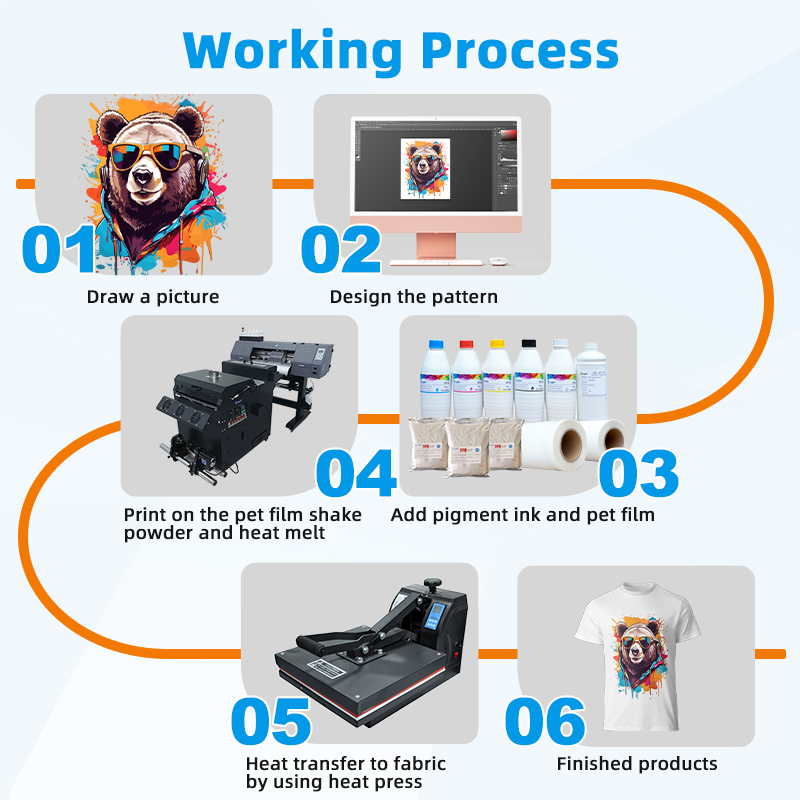

Yinghe New Generation Transfer Printing Machin:
- printing,
- powder shaking,
- drying and automatic taking upfunctions.
- No engraving, no hollowing and waste discharging.
Instead of fast food fashion concept, vetiver is based on the idea of the wearer, not limited to the scope of age or season. At every time of the day, every region and every place can freely change and connect smoothly. Vetiver skillfully combines leisure style and soft multi-functional materials to create a clothing piece valued by fearless and confident women.
