    Flated Automatic Electric Hot foil Stamping Machine

    US $1,399.00
    YH-8025/3025
    Yinghe Automatic Electric Heat Press Machine 220V Aluminum Hot Stamping Machine for Gold and Silver Foil.
    Quantity
    US $312.24 To via 安昆 Estimated Delivery on 1-7
    The Yinghe YH-8025/3025 Digital Hot Foil Stamping Machine is a new-generation thermal transfer digital hot stamping device, a high-performance automatic hot foil stamping machine with remarkable all-round performance. Its standout features include simplicity, high precision, high efficiency, superior quality, a compact footprint, and instant output capabilities—all of which effectively boost the workflow efficiency of end-users. Furthermore, its compact body design of this Hot Foil Stamping Machine optimizes space utilization for the final product. As society advances and demands become increasingly diversified, our automatic hot foil stamping machine is engineered to meet the need for more precise color reproduction and to better facilitate modern printing requirements—such as variable data printing—thereby making the digital hot stamping process of the Hot Foil Stamping Machine simpler than ever before.


    Machine hot stamping samples




    Hot stamping machine demonstration video

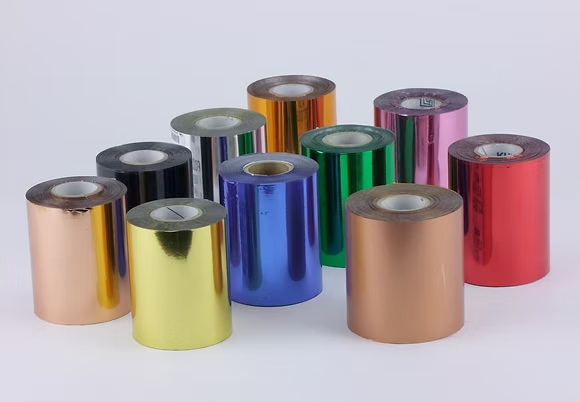

    ​​​​​Hot stamping comes in a variety of colors





    Product Parameters

    Model
    YH-3025/8025
     Printing Method
    Thermal Transfer
    Print Head Width
    57 mm
     Print Resolution
    300 dpi
    Dot Density
    11.8 dots/mm
    Max. Printing Area
    250 x 300 mm
    Print Speed
    20~50 mm/s
    Communication Interface
    USB 2.0 Full Speed
    Operating System
    Windows
    Power Supply
    110–240 V / 50–60 Hz
     Operating Environment
     Temperature: 0~30°C, Humidity: 20~85% RH (non-condensing)
    Reliability
    Print Head Life: 150,000 m
    Platform Size
    320 x 530 mm
    Total Weigh
    Approx. 28 kg
    Print Driver
    Approx. 28 kg
    Storage Environment
    Temperature: -25~70°C, Humidity: 0~90% RH (without gauze, non-condensing)
    Features
    Automatic Operation: Streamlines the foil stamping process and enhances work efficiency.
    High-Resolution Printing: 300 × 300 dpi for precise rendering of fine design details.
    Wide-Format Printing: Supports a maximum width of 250 mm to accommodate large-scale design requirements.
    Powerful Heating: 150 W power ensures rapid temperature rise for efficient operation.
    Human-Centric Interface: Features USB or SD card connectivity for simple and convenient printing operations.


    Print Head Maintenance

    After the printer has been used for a period of time, if the print is unclear or shows white vertical lines, the print head may be dirty and require cleaning. Follow the steps below:

    1. Turn off the printer power.

    2. Insert the AC power cord plug into the power outlet.

    3. Remove the foil and locate the black part of the print head.

    4. Use a cotton swab or lint-free cloth dipped in 99% pure alcohol to wipe all printing dots on the print head from one end to the other in a single direction. If the cotton or cloth shows significant dirt, repeat with a fresh cotton swab or lint-free cloth dipped in 99% pure alcohol, wiping all printing dots from end to end.

    5. After the alcohol has completely evaporated, reinstall the foil.

    6. Reconnect the power and perform a test print.

    ✧ The print head should generally be maintained once a week. If the printing workload is heavy, perform maintenance on the print head daily.

    If cleaning the print head does not resolve the issue, the problem may be localized damage to the print head caused by prolonged high-temperature operation or high-speed wear. In this case, the print head will need to be replaced.
