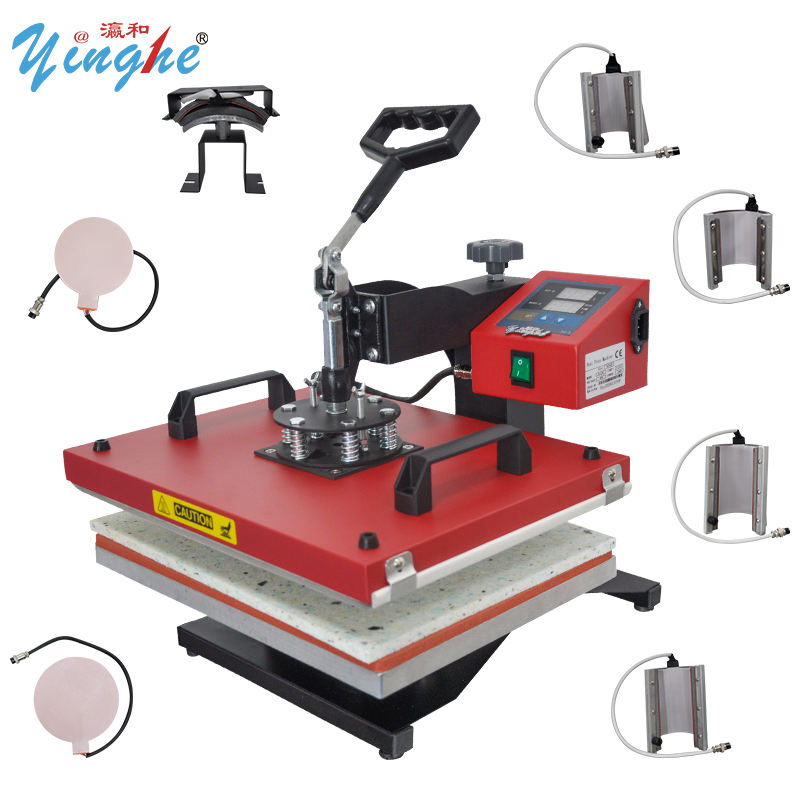

Yinghe 8 in 1 Factory Multifunctional Heat Press Machine

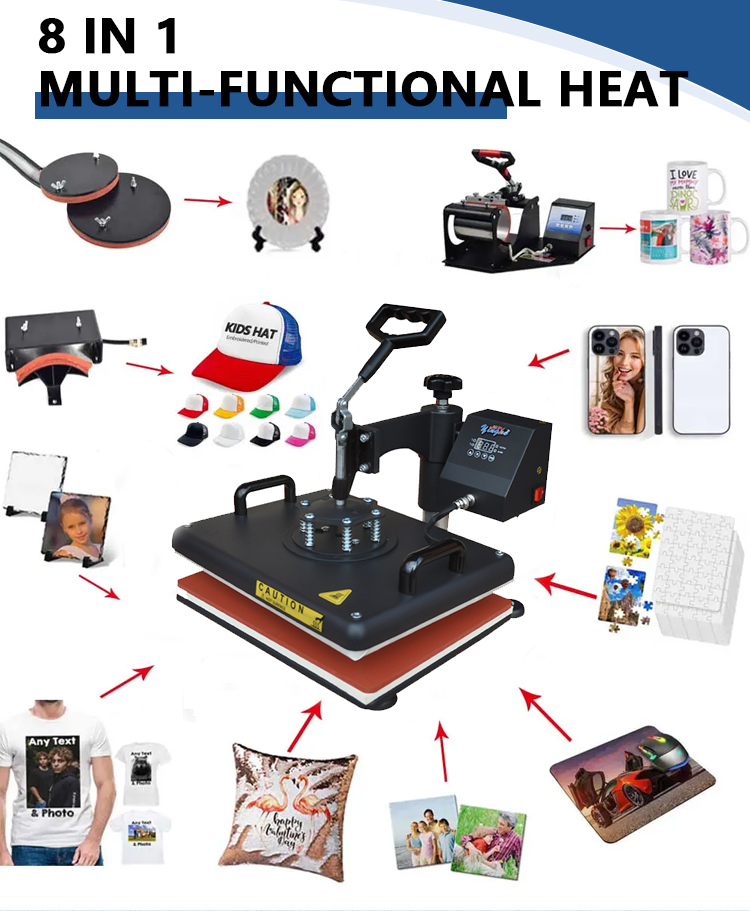

With its 8 different functions it can perform a wide range of heat press tasks.
5
YH 8 in 1
1piece
14piece
7Day
Overseas local position
$159.00
Package Size： cm
Payment Method
Yinghe heat press machine industrial-grade heat transfer machine is a tailor-made efficiency revolution for you! The operation is as simple as home appliances, and the performance is stronger than professional ones. Whether you are a DIY expert who is just starting out or a printing factory seeking to upgrade, it can easily meet your needs.
Precise control, easy to use:±0.5% precision electronic temperature control: The temperature is uniform and stable, and you can say goodbye to color difference and defects, and every transfer is perfectly presented.
Adjustable pressure system: Adapt to different material thicknesses, from soft T-shirts to hard ceramic cups, and the pressure can be controlled at will.
Intelligent timing + sound alarm: Free your hands, and remind you immediately when the time is up, eliminating the trouble of overvoltage or undervoltage.Powerful and versatile, one machine for multiple uses: Unimpeded global travel, ready to use after turning on.
Replaceable parts design: With the flatHeat Transfer Press, any image and letter can be transferred onto the ceramic, glass, or metal objects as well as T-shirt, basically for almost all the flat objects which can be heated above 200℃. Transfer unique images. : meet your wild and unrestrained custom creativity.
Reliable and durable, a safe choice:Industrial-grade durable structure: can withstand the test of high-intensity production, and the production capacity is doubled.One-year warranty commitment: worry-free after-sales, more assured investment.
CE certified: strictly in line with EU safety standards, quality assurance, unimpeded access to the global market.
From creativity to product, it has never been so simple and efficient! This heat transfer machine condenses complex processes into a precise press. No professional background is required, and your productivity and creativity are instantly released, opening up the infinite possibilities of customized printing!
What's in the bos?
Standard baking coaster 7.5-9cm
Small baking coaster 5.5-7.5cm
Standard baking tray pad 8 inch/11cm
Large baking tray pad 10 inch/15cm
Flat hot piece 29X38cm
17OZ cone baking coaster
12OZ cone baking coaster
Baking Cap Assembly
Technical Parameter:
Specified Voltage：200－250V( customize for different needs)
Capability：2.2KW
Capability：2.2KW
Temperature Range：0-400℃
Time Range：0-60Secs
Dimension：38*38CM
Gross Weight：32KG
Gross Weight：32KG
YH-3838 Sublimation Heat Press Details
Operation Procedures:
Taking the white cotton cloth as an example
A. Mirror print your picture on light sublimation paper with normal ink
B. Hold up the press handle, open the heat board
C Instruction light will be on
D Switch power on
E Adjust the temperature controller on the left side.（The three buttons indicate ones place, tens place, hundreds place from left to right side），press + or – to adjust appropriate heating temperature-180℃, time needed approx. 10 minutes to reach 180℃；（Heating temperatures depends on materials, please request for the standard temperature information）
F Adjust time controller on the right to the appropriate heating time 30 seconds(The heating time depends on the materials）
G The machine will keep the constant temperature status when reaching the setting temperature
H Put the cloth on the silica gel board holder, put the picture facing the cloth for heat transferring，press down the heat board and the timer counts automatically. Note：Too heavy pressure may cause the handle transformed. Must adjust the pressure ahead of operation.
I While time up，the buzzer warns automatically. Swift the power off, hold up the press handle，take out the cloth and tear out the picture paper right away
For metal material board, the heating temperature should be approx. 170-200℃，the heating time around 60 seconds； For ceramic board, the heating temperature should be approx. 200-220℃，the heating time around 60 seconds； For the fabric, the heating temperature should be approx. 120-140℃，the heating time around 5-10 seconds. Please take the below information for example:
Thermal Sublimation Printing Time and Temperature | ||||
Article | Printing Material | Temperature ( ℃) | Time (second) | Remark |
1.Ceramic | Sublimation ink, normal photo print paper (or sublimation paper) | 220 | 60 | 1. Mirror print the picture 2. Count the time when reach constant temperature 3. Stick the picture on the ceramic properly 4. Put the ceramic on the holder horizontally 5. Adjust low pressure to avoid broken of the ceramic |
2. Pearl Metal Board | Sublimation ink, normal photo print paper (or sublimation paper) | 180 | 60 | 1. Mirror print the picture 2. Count the time when reach constant temperature 3. The temperature should not be too high 4. Tear away the film on the cover before heat transferring and then put the pearl metal board on the holder horizontally 5. Adjust high pressure |
3. Metal Catch Lock | Sublimation ink, normal photo print paper (or sublimation paper) | 180 | 60 | 1. Mirror print the picture 2. Count the time when reach constant temperature 3. Stick the picture on it as close as you can 4. Tear away the film on the cover before heat transferring 5. Adjust high pressure |
4. Half Cotton Light Color T-shirt | Sublimation ink, normal photo print paper (or sublimation paper) | 180-190 | 120-130 | 1. Mirror print the picture 2. Count the time when reach constant temperature 3. Only for light color, half cotton T-shirt 4. High pressure |
5. Half Cotton Dark Color T-shirt | Sublimation ink, normal photo print paper (or sublimation paper) | 180-190 | 120-130 | 1. Print the picture 2. Count the time when reach constant temperature 3. Only for dark color, half cotton T-shirt 4. High pressure |
6. Pure Cotton Light Color T-shirt | Sublimation paper, normal ink | 180-190 | 30 | 1. Mirror print the picture 2. Count the time when reach constant temperature 3. Only for pure cotton Light Color T-shirt 4. High pressure |
7. Pure Cotton Dark Color T-shirt | Sublimation paper, normal ink | 180-190 | 30 | 1. Print the picture 2. Count the time when reach constant temperature 3. Only for pure cotton Dark Color T-shirt 4. High pressure |
8. Shell Necklace Ring | Sublimation ink, normal photo print paper (or sublimation paper) | 180 | 60 | 1. Mirror print the picture 2. Count the time when reach constant temperature 3. Stick the picture on it as close as you can 4. High pressure |
9.Imitative Ceramic Necklace Ring | Sublimation ink, normal photo print paper (or sublimation paper) | 180 | 60 | 1. Mirror print the picture 2. Count the time when reach constant temperature 3. Stick the picture it as close as you can 4. High pressure |
Understand your needs
When choosing a heat press, meeting your needs is an important decision factor. Do you iron regular clothes and T-shirts every day? A small heat press is ideal. If you often undertake large projects, it would be a wiser choice to upgrade to a larger device such as a roller press.
We have a variety of heat press solutions, including:
T-shirt heat press / clothing heat press
Garment hot stamping machine / hot stamping machine
Embossed embossing machine (embossing embossing machine)
Cup baking machine
Inkjet printer
Multi-function heat press
4-in-1 cap ironing machine
Welcome to inquire to meet your different needs.
We have a variety of heat press solutions, including:
T-shirt heat press / clothing heat press
Garment hot stamping machine / hot stamping machine
Embossed embossing machine (embossing embossing machine)
Cup baking machine
Inkjet printer
Multi-function heat press
4-in-1 cap ironing machine
Welcome to inquire to meet your different needs.
